Metal Expansion Joints

Garlock Saber Metallic Expansion Joint

Metal joints withstand pressures to 1,000 psi and temperatures to 1,500°F (815°C). Available in wide range of configurations and alloys

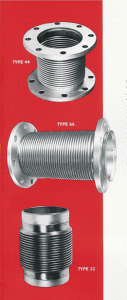

Type 44 – Type 44 Ends are plate steel flanges conforming to ANSI dimensions welded directly to the integral ends of the bellows. Stainless steel and other alloys are available when specified.

Type 66 – Type 66 Ends are flat face plate flanges conforming to ANSI dimensions secured to the integral end of the bellows flared (Vanstoned) to retain the flanges. This allows the use of carbon steel flanges when the only wetted parts will be stainless steel of the bellows. Also permits easy bolt hole alignment.

Type 22 – Type 22 End are carbon steel welding nipples with ANSI standard bevel. Schedule 40 pipe size is used through 12” diameters. 1/4” wall thickness for sizes over 12” unless otherwise specified.
